When engineers select tungsten carbide bushings for pumps, compressors, or turbines, they often focus on 硬度 そして 耐摩耗性. But two equally critical parameters are dimensional tolerance and surface finish.
These two factors determine how well the bushing fits the shaft, how smoothly it operates, and how long it lasts. Even a small deviation — a few microns off — can cause excessive wear, vibration, or leakage.
This article explains what tolerances and surface finishes mean, how they affect bushing performance, and what specifications decision-makers should look for when sourcing from carbide suppliers.

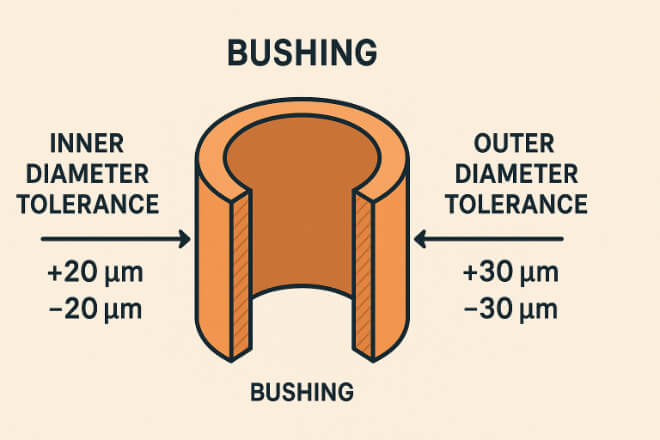

What Are Dimensional Tolerances?
寸法公差 defines how much variation is allowed from a specified dimension during manufacturing.
For example, if a bushing’s inner diameter (ID) is 25.000 mm with a tolerance of ±0.005 mm, it means the actual size can range from 24.995 mm to 25.005 mm and still be acceptable.
In tungsten carbide bushings, tolerances are especially important because:
Carbide is extremely hard and brittle — difficult to machine after sintering.
Tight fits ensure stable alignment and minimal vibration.
Small errors can cause overheating or premature wear.
A quality bushing supplier uses CNC grinding, centerless polishing, and lapping machines to maintain precision down to microns.

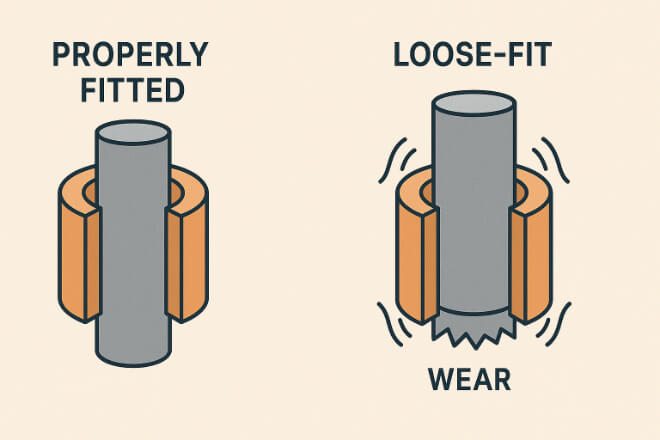

Why Tight Tolerances Matter
In rotating and high-pressure systems, tolerance accuracy ensures reliability and safety.
If the inner diameter (ID) is too tight, it may seize on the shaft during operation.
If it’s too loose, the shaft may vibrate, reducing efficiency and increasing leakage.
The correct balance ensures:
Consistent film thickness in lubricated systems
Stable alignment between moving parts
Reduced friction and heat generation
Longer service life for both bushing and shaft
吾輩は猫である。名前はまだない。どこで生まれたか頓と見当がつかぬ。
Common Tolerance Classes for Carbide Bushings
Carbide bushing tolerances are typically defined using ISO 286 or DIN standards.
The most common are H7, H6, and H5, depending on the fit requirement.
| Tolerance Class | Fit Type | Example Range (for Ø25 mm ID) | 応用 |
|---|---|---|---|
| H7 | Standard fit | +0 / +0.021 mm | General pumps, compressors |
| H6 | Precision fit | +0 / +0.013 mm | High-speed shafts |
| H5 | Tight fit | +0 / +0.008 mm | Critical sealing or bearing positions |
High-end carbide manufacturers can achieve H5 or better through precision grinding and temperature-controlled production.
Understanding Surface Finish in Carbide Bushings
Surface finish describes how smooth or rough a surface is. It’s often measured in Ra (Roughness Average), expressed in micrometers (µm).
で tungsten carbide bushings, a fine surface finish helps:
Reduce friction and wear
Maintain consistent lubrication film
Minimize leakage paths
Improve sealing performance
Typical surface finishes for carbide bushings range from Ra 0.1 µm to Ra 0.05 µm, depending on application and pairing material (such as steel or silicon carbide shafts).
Types of Surface Finishes
Different applications require different finishes. The choice depends on whether lubrication is present and how smooth the mating surfaces must be.
| Finish Type | Ra Range (µm) | 一般的な用途 | Remarks |
|---|---|---|---|
| Ground | 0.20–0.10 | General purpose | Good balance of cost and performance |
| Lapped | 0.08–0.05 | High-speed or precision pumps | Excellent wear control and sealing |
| Mirror-Polished | ≤0.04 | Critical sealing faces | Reduces leakage and startup friction |
The smoother the finish, the more precise the contact — but polishing also increases cost and production time.

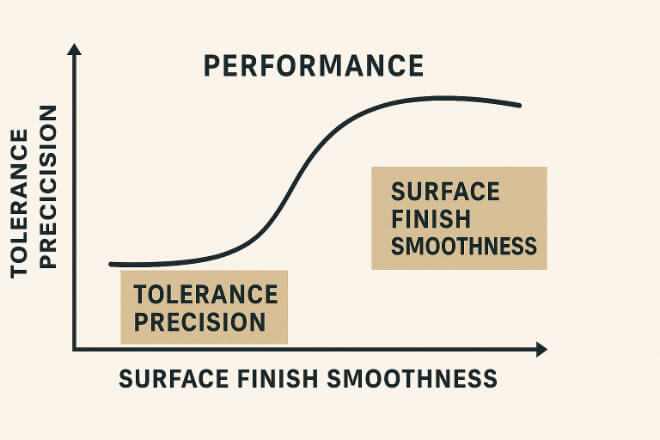

Tolerances vs. Surface Finish: How They Work Together
Tolerances and surface finish are interdependent.
A tight tolerance without a proper finish can cause galling or friction.
A smooth surface with poor tolerance can result in loose fits or shaft wobble.
For high-performance machines, both must be controlled together. The supplier’s machining precision, lapping quality, and inspection system are key to achieving this balance.

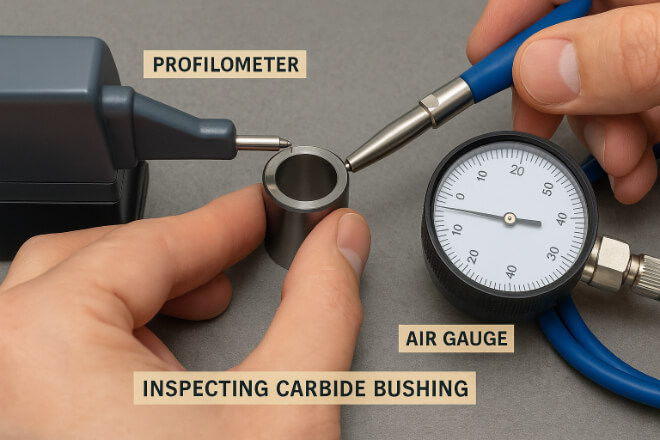

How Suppliers Measure and Control Precision
Reliable tungsten carbide suppliers follow a strict quality control process to ensure tolerances and surface finish meet design standards.
Typical steps include:
Precision grinding to rough dimension
Centerless finishing for uniform outer diameter
Lapping or polishing under controlled pressure
Surface inspection using a profilometer
Dimensional check with digital micrometers and air gauges
Flatness and concentricity check before packing
Suppliers also store measurement data to maintain batch traceability, ensuring every bushing meets its intended specification.

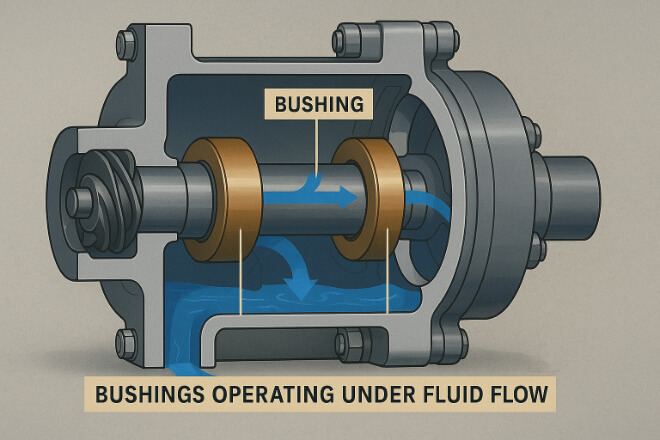

Applications Requiring Tight Tolerance and Fine Finish
Not all bushings require ultra-precision manufacturing.
However, industries with high rotational speeds or fluid sealing demand the best surface and tolerance control.
Typical examples include:
Oil and gas pump bushings (tight clearances under pressure)
Submersible pump sleeves (abrasive resistance)
Compressor guide bushings (vibration stability)
Cryogenic applications (thermal stability at low temperatures)
In these cases, H6 tolerance with Ra 0.05 µm finish is often standard.

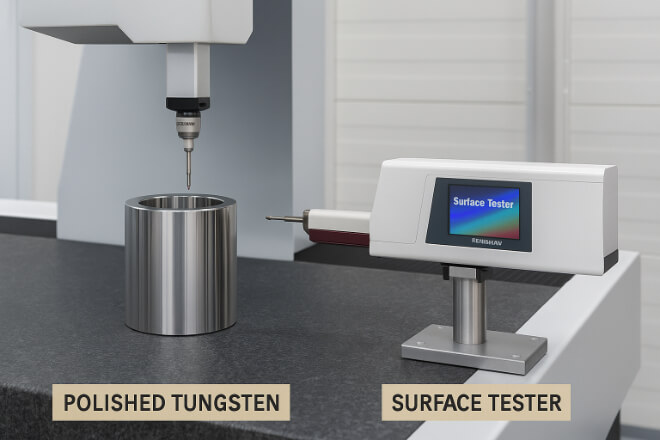

Inspection Methods for Quality Assurance
Before shipping, each bushing should pass through dimensional and surface inspections.
The most common tools used include:
Digital micrometers and bore gauges
座標測定機 (CMM)
Surface roughness testers (Ra meters)
Roundness and concentricity instruments
A professional supplier also provides an inspection report with the following data:
ID and OD tolerance results
Surface roughness value (Ra)
Flatness or concentricity reading
Batch trace number
結論
In tungsten carbide bushings, dimensional tolerance and surface finish are the two silent heroes behind smooth, efficient machine operation.
They directly impact how well the bushing fits, seals, and withstands load and temperature changes.
For decision-makers, the takeaway is simple:
Specify your required tolerance and finish clearly.
Work with certified suppliers who provide inspection reports and traceability.
Balance performance and cost — tighter tolerances and mirror finishes cost more but last longer.
Choosing precision today means fewer problems tomorrow.
企業の詳細を知りたい場合は、お気軽にお問い合わせください。 お問い合わせ.
