Chemical processing plants operate in some of the harshest industrial environments.
Pumps, mixers, agitators, and compressors constantly face high pressure, temperature, and corrosive fluids. Every rotating component inside them must perform with precision and reliability.
A small failure in a bearing or bushing can lead to leakage, contamination, or full equipment shutdown.
This is why many engineers and plant operators now rely on tungsten carbide bushings.
These bushings offer superior 내마모성, chemical stability, and long service life—helping chemical facilities run safely, efficiently, and continuously.
이 기사에서는 다음 사항을 살펴봅니다. tungsten carbide bushings enhance the performance and durability of chemical processing equipment, and why they are considered an investment in long-term reliability.

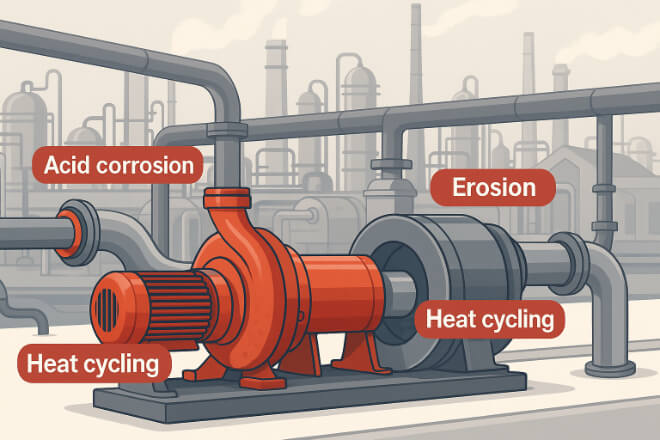

Operating Challenges in Chemical Processing
Chemical processing systems are exposed to aggressive conditions that quickly destroy standard metal parts.
Typical problems include:
Corrosion: Acids, alkalis, and chlorides react with metal bushings.
Erosion: Suspended solids cause surface wear.
Thermal cycling: Equipment operates under changing temperature and pressure.
Lubrication failure: Fluids evaporate or degrade under heat.
Contamination: Material transfer or product leakage damages seals and bearings.
When these problems occur, they cause costly downtime and maintenance interruptions.
Tungsten carbide bushings provide a solution that can handle all these challenges effectively.
Why Tungsten Carbide Is Ideal for Chemical Equipment
Tungsten carbide (WC) is a compound of tungsten and carbon, usually bonded with a small amount of nickel or cobalt. This creates an extremely hard and chemically stable material.
Key Properties:
Compressive strength >4000 MPa.
Low coefficient of thermal expansion (~4.5 × 10⁻⁶ /K).
Corrosion resistance to acids, alkalis, and solvents.
Excellent dimensional stability under temperature change.
Unlike stainless steel or bronze, tungsten carbide bushings maintain their shape and surface finish even in strong chemical exposure and continuous operation.
Comparison with Other Bushing Materials
| 재료 | 부식 저항성 | 내마모성 | Temperature Limit (°C) | Service Life |
|---|---|---|---|---|
| Bronze | Low – reacts with acids | 낮은 | 250 | 짧은 |
| 스테인리스 스틸 | Medium – prone to pitting | 보통의 | 400 | 중간 |
| Tungsten Carbide (Ni Binder) | Excellent – resists acids and chlorides | 높은 | 800+ | 긴 |
Tungsten carbide clearly outperforms common materials in terms of wear and 내식성, making it the best option for acidic, abrasive, or high-temperature chemical media.
Corrosion Resistance in Aggressive Fluids
Chemical plants use a wide range of fluids — from sulfuric acid to caustic soda and solvents — that can destroy most metals.
Tungsten carbide, especially when nickel-bonded, resists corrosion in both acidic and basic media.
Even under continuous flow and high pressure, the carbide’s surface remains smooth and chemically inert, preventing pitting or micro-cracks.
This stability ensures long life in acid circulation pumps, chlor-alkali units, and solvent handling systems.
Role in Key Chemical Processing Equipment
| Equipment Type | Function of Bushing | Benefit in Operation |
|---|---|---|
| Centrifugal Pump | Supports shaft, maintains alignment | Reduces vibration and leakage |
| Agitator or Reactor Shaft | Provides bearing support under chemical load | Improves stability under heat and pressure |
| Compressor | Reduces friction on rotating parts | Extends component life in gas handling |
| Metering or Dosing Pump | Provides precision movement | Maintains consistent chemical delivery |
Tungsten carbide bushings are found in every major area of a chemical plant—from feed pumps to final filtration—where mechanical stability and safety are critical.
Binder and Microstructure Considerations
| 바인더 유형 | 부식 저항성 | 충격 강도 | 일반적인 응용 프로그램 |
|---|---|---|---|
| 코발트(Co) | 좋은 | 높은 | Pumps with low chemical exposure |
| 니켈(Ni) | 훌륭한 | 보통의 | Acidic or corrosive chemical pumps |
Nickel-bonded carbide is typically preferred in the chemical industry because it resists chloride and acid attack.
Fine-grain microstructures provide higher 경도 and smoother surfaces, reducing friction and wear between rotating components.
Dimensional Stability Under Heat and Pressure
Chemical reactors and pumps often operate at elevated temperatures. Tungsten carbide’s low thermal expansion keeps shaft and housing alignment consistent.
This prevents vibration, misalignment, and premature seal wear — even after thousands of thermal cycles.
As a result, tungsten carbide bushings maintain tight tolerances, enabling pumps and compressors to operate efficiently with minimal leakage.
Maintenance and Cost Efficiency
| 재료 | Average Service Life | Maintenance Interval | Downtime Cost |
|---|---|---|---|
| Bronze | 6–12 months | Frequent | 높은 |
| 스테인리스 스틸 | 1–2 years | 보통의 | 중간 |
| 텅스텐 카바이드 | 3–5 years | 낮은 | 낮은 |
Although tungsten carbide bushings are more expensive initially, their long service life and minimal maintenance lower total costs over time.
In continuous chemical production lines, this reliability translates into reduced downtime and higher process efficiency.
결론
In the demanding world of chemical processing, equipment must resist corrosion, heat, and abrasion without failure.
Tungsten carbide bushings deliver unmatched strength and durability, maintaining performance even in acids, solvents, and high-pressure conditions.
For plant managers and design engineers, upgrading to carbide bushings means longer uptime, fewer replacements, and safer, more efficient operation.
In short, they are a small component with a big impact on plant productivity and safety.
