Silicon Carbide vs Tungsten Carbide for Abrasive Slurries: Tribology and Heat Transfer

In pumps, mixers, and valves that handle abrasive slurries, the choice of seal face material is critical. Two of the most used materials are silicon carbide (SiC) and tungsten carbide (WC).

Each has unique tribological (friction and wear) and thermal (heat transfer) properties that directly affect reliability, leakage control, and maintenance costs.

This article helps decision-makers understand the performance differences between silicon carbide and tungsten carbide when exposed to abrasive, particle-laden fluids, and how these differences impact seal life and overall system efficiency.

Tribology Basics: Friction, Wear, and Lubrication

Tribology is the science of friction, wear, and lubrication.

In a mechanical seal, the two faces—one rotating, one stationary—must remain close enough to prevent leakage, yet lubricated enough to minimize wear.

When slurries are involved, this becomes much harder:

Abrasive particles in the fluid can scratch the faces.
Viscous flow generates heat at the interface.
Poor lubrication can lead to dry running and rapid wear.

That’s why the material pair selection—such as SiC vs WC—is so important.

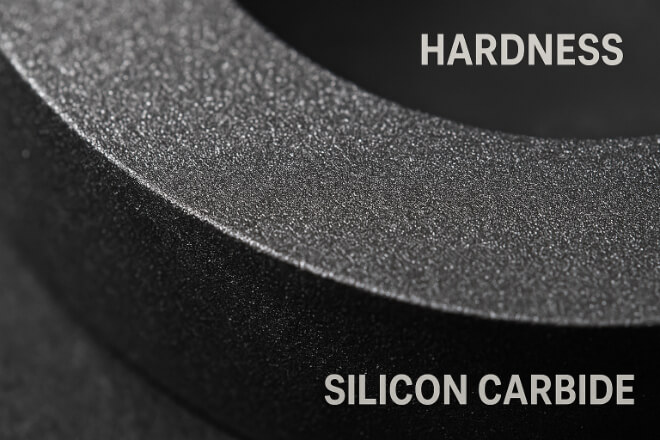

Silicon Carbide: The Hard, Brittle Performer

Silicon carbide is a ceramic known for its high hardness and low friction.

1). Key Advantages

Extreme hardness: Excellent wear resistance to abrasion and particle erosion.
Low friction coefficient: Less heat generation at the seal interface.
High thermal conductivity: Rapidly removes heat from contact surfaces.
Chemical resistance: Inert to most acids, bases, and corrosive fluids.

2). Typical Applications

Clean slurries with small or soft particles.
Chemical processes where corrosion resistance is vital.
High-speed pumps and compressors.

3). Limitations

Brittle behavior: Sudden impacts or vibration can crack the faces.
Difficult to re-polish: Once cracked, replacement is usually required.
Higher material cost compared to some metal-carbide options.

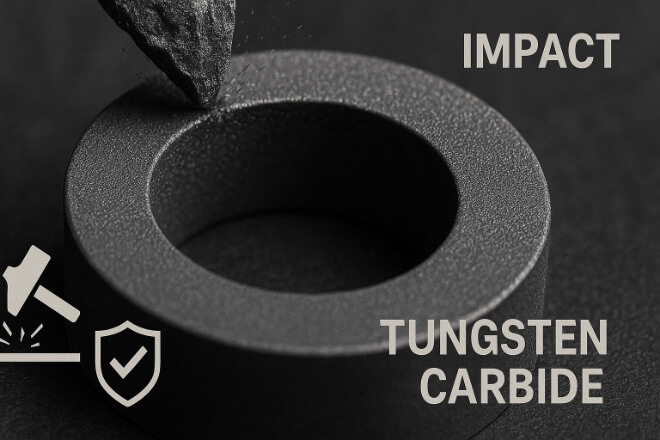

Tungsten Carbide: The Tough, Wear-Resistant Option

Tungsten carbide is a metal matrix composite—usually cobalt- or nickel-bonded—that balances hardness and toughness.

1). Key Advantages

Excellent toughness: Resists cracking under vibration or impact.
High compressive strength: Ideal for high-pressure applications.
Good wear resistance: Performs well even with large abrasive particles.
Customizable grades: Nickel-bonded for corrosion resistance, cobalt-bonded for strength.

2). Typical Applications

Slurry pumps, dredging, mining, and oilfield mud systems.
Any service with large, hard, or irregular particles.
Moderate to high-temperature systems.

3). Limitations

Slightly higher friction than SiC in clean fluids.
Lower corrosion resistance (especially in cobalt grades).
Heavier and denser, which can increase load in small seals.

Head-to-Head Comparison

Property	Silicon Carbide (SiC)	Tungsten Carbide (WC)
Hardness	Very High (Mohs 9.2)	High (Mohs 8.5–9)
Toughness	Low (Brittle)	High (Impact-resistant)
Thermal Conductivity	Excellent (120–200 W/m·K)	Good (80–120 W/m·K)
Friction Coefficient	Low (~0.15)	Moderate (~0.20)
Corrosion Resistance	Excellent	Good (Nickel binder preferred)
Abrasive Handling	Best for fine particles	Best for coarse particles
Service Temperature	Up to 1000°C	Up to 650°C

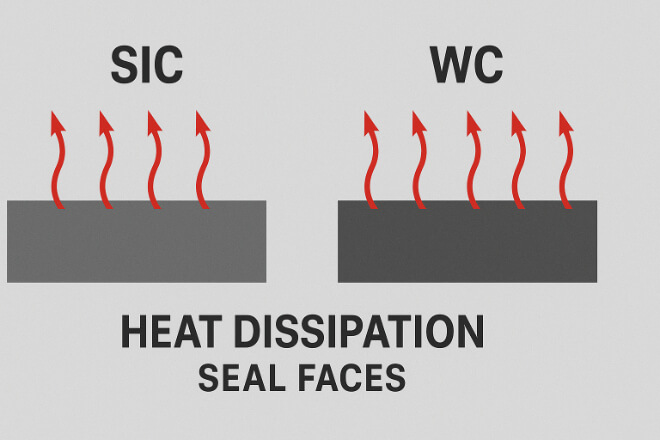

Heat Transfer: Managing Temperature in Slurry Seals

When particles grind between seal faces, heat builds up. Efficient heat dissipation prevents warping and cracking.

Silicon Carbide has higher thermal conductivity, helping maintain even temperatures across the surface.
Tungsten Carbide retains heat slightly longer but compensates with superior mechanical strength, resisting distortion.

In high-pressure or high-speed applications, combining WC with proper cooling design offers better overall stability.

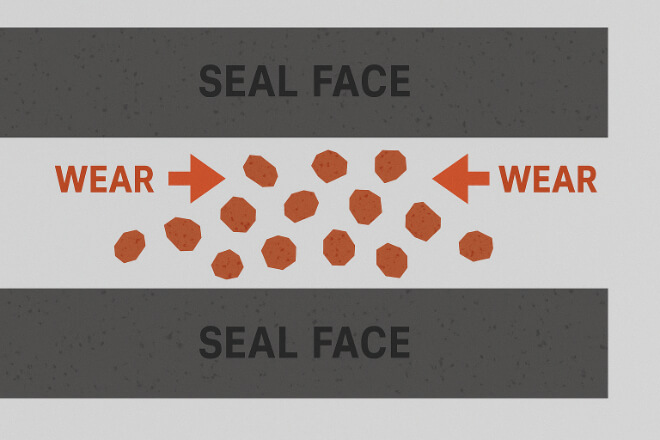

Tribological Behavior in Abrasive Slurries

The two materials behave differently under slurry conditions:

1). Silicon Carbide:

Low friction reduces surface wear.
However, its brittleness makes it prone to edge chipping when particles are large or angular.

2). Tungsten Carbide:

Excellent durability against particle impact.
Handles vibration and shock loads well.
Slightly higher friction can raise temperature, but it remains stable under abrasive wear.

In real-world slurry services, many engineers use WC vs WC or WC vs SiC pairs for balanced performance.

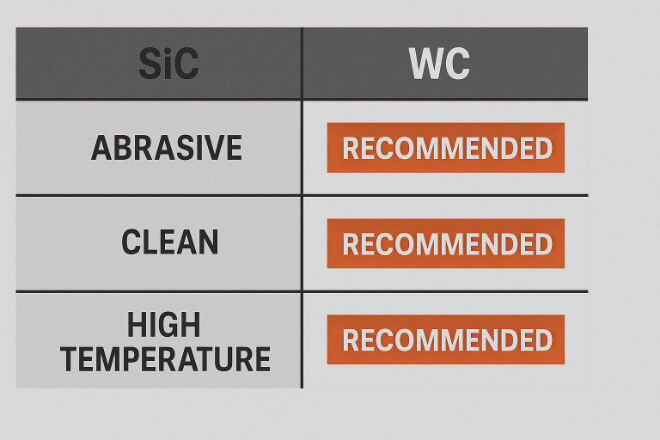

Selecting the Right Material Pair

Choosing between SiC and WC depends on the system’s operating conditions:

1). Fluid Type:

Clean or chemically aggressive → Silicon carbide.
Muddy or particle-rich → Tungsten carbide.

2). Operating Pressure:

Moderate → Silicon carbide works well.
High → Tungsten carbide’s compressive strength is advantageous.

3). Thermal Environment:

High heat → SiC dissipates better.
Fluctuating temperature or vibration → WC provides stability.

Industry Applications

Industry	Preferred Material	Reason
Mining and dredging	Tungsten carbide	Handles coarse abrasive particles
Chemical processing	Silicon carbide	Corrosion resistance
Oil and gas	WC or WC–SiC pair	Balanced durability and heat control
Power plants	Tungsten carbide	Pressure and impact resistance
Marine pumps	Silicon carbide	Low friction and clean operation

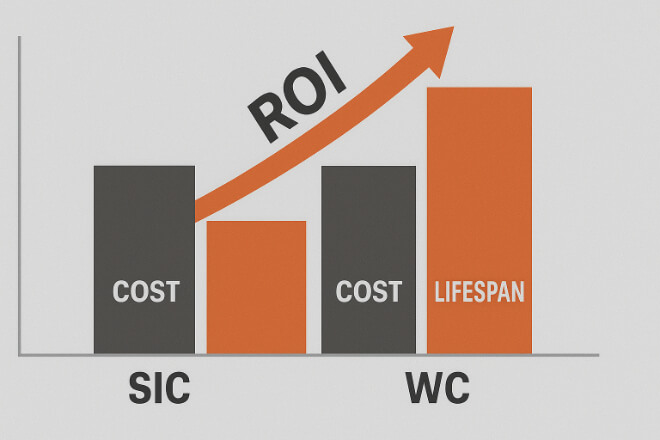

Cost and Service Life Considerations

While silicon carbide has a lower friction coefficient, tungsten carbide often offers better cost-to-durability ratio in abrasive conditions.

Initial Cost: SiC may be 10–20% more expensive.
Maintenance Cost: WC lasts longer in abrasive slurries, reducing replacement cycles.
Overall ROI: Depends on the specific slurry composition and pump design.

Maintenance and Inspection Tips

Inspect for cracks or chips: Especially on SiC rings.
Clean regularly: Abrasive residues can scratch both materials.
Check flatness and roughness: Maintain Ra ≤ 0.1 μm for sealing faces.
Use compatible mating pairs: Avoid pairing brittle and soft materials together.

Conclusion

Both silicon carbide and tungsten carbide can perform well in abrasive slurry environments, but they excel in different conditions:

SiC: Best where corrosion resistance, low friction, and thermal control are essential.
WC: Ideal for impact resistance, toughness, and handling coarse particles.

The right choice depends on slurry composition, operating load, and desired lifespan.

For most abrasive services, tungsten carbide remains the preferred choice due to its durability and mechanical robustness.
