Tungsten Carbide Electrode

Engineered for extreme abrasion and impact resistance, Retop’s tungsten carbide electrode enhance surface durability on tools and components in mining, drilling, and wear-intensive industries.

Product Description

Tungsten carbide electrode are welding rods that combine crushed tungsten carbide particles with a nickel, bronze, or cobalt matrix. These electrode are used for hardfacing critical wear surfaces, providing exceptional abrasion resistance far beyond conventional welding materials. Retop produces both spherical cast carbide and angular crushed carbide electrode, suitable for various welding processes including oxy-acetylene, TIG, and induction.

These electrode are widely used in applications involving severe abrasion or erosion, such as oilfield stabilizers, drilling tools, mining bits, trencher teeth, and construction wear plates. They are essential in extending the service life of components operating in high-impact or high-particle-flow environments, especially in the oil & gas, mining, agriculture, and construction sectors.

Features

High Hardness Aggregates
Tungsten carbide particles with HRA 89–93 ensure maximum protection in abrasive wear zones.
Flexible Welding Compatibility
Available in both self-fluxing and non-fluxing variants, suitable for torch, induction, or TIG welding.
Multiple Grit Sizes & Shapes
Choose from spherical, angular, or crushed granules based on wear profile and bonding requirements.
Custom Lengths & Diameters
Available in standard 350mm or custom-cut rods with varying carbide concentrations and matrix options.
Minimal Material Loss During Deposition
Low spatter and efficient bonding reduce waste and improve overlay quality.

Specifications

Parameter	Specification
Carbide Content	50% – 70% by weight

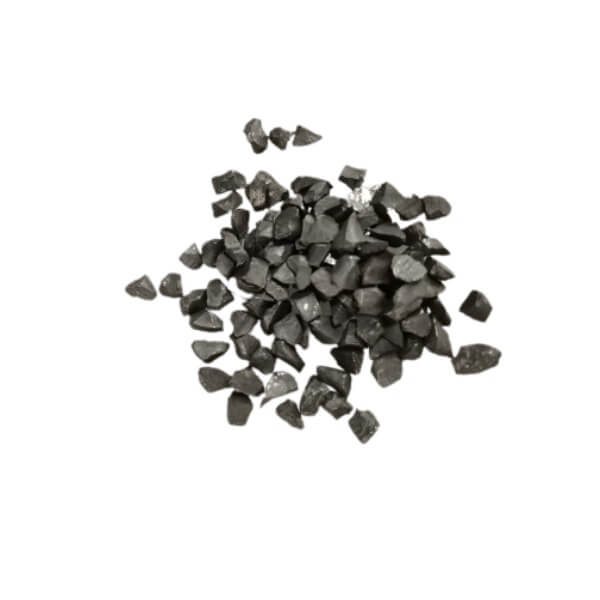

Particle Type	Crushed / Spherical / Angular
Matrix Material	Nickel, Bronze, or Cobalt
Rod Diameter	Ø 6 mm – 10 mm (customizable)
Rod Length	350 mm (standard) or customized
Hardness (HRA)	Up to 93

Why Choose Retop Carbide Composite Rod?

With over 14 years of experience in tungsten carbide manufacturing, Retop delivers carbide electrode trusted by oilfield, mining, and industrial wear parts professionals worldwide. We control every step from raw material processing to sintering and bonding, ensuring consistent particle quality, uniform matrix distribution, and excellent weldability. Our in-house customization, strict quality inspection, and fast delivery help global clients reduce downtime and improve tool performance in harsh conditions.
