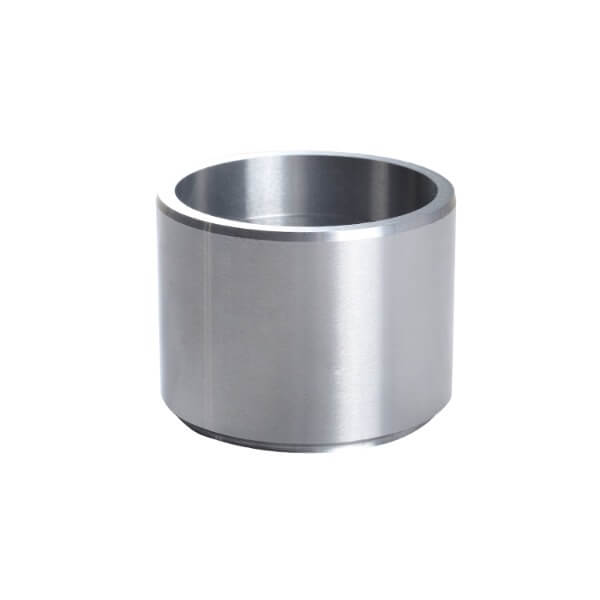

Tungsten Carbide Sleeve
Retop manufactures high-performance carbide sleeves engineered for extreme wear, corrosion, and thermal resistance in rotating equipment such as pumps, compressors, and drilling tools.
- Excellent resistance to abrasion and corrosion
- High dimensional accuracy for shaft fit
- Custom sizes and inner bore tolerances
- Performs reliably in high-temperature environments
Product Description
Tungsten carbide sleeves are cylindrical protective components designed to support and shield rotating shafts from friction, fluid erosion, and abrasive wear. Manufactured from cemented carbide (typically WC-Co or WC-Ni), these sleeves offer outstanding hardness, chemical stability, and longevity in critical mechanical systems. Retop provides custom and standard carbide sleeves in both straight and stepped designs, ensuring precise fit and minimal clearance in high-performance assemblies.
Carbide sleeves are widely used in centrifugal pumps, submersible pumps, compressors, motors, gearboxes, mud tools, and downhole drilling systems. Their excellent resistance to slurry, seawater, oil-based fluids, and gas makes them indispensable in oil & gas, chemical processing, marine, mining, and power generation industries—especially in high-wear and high-load rotating conditions.
Features
High Wear and Erosion Resistance
Ideal for rotating systems exposed to sand, slurry, and particulate-laden fluids.Precision Machined ID/OD Surfaces
Tight tolerance control for secure shaft alignment and minimal vibration.Wide Grade Selection
Offered in YG6, YG8, YG15, or other customer-specified tungsten carbide grades.Corrosion and Heat Tolerance
Reliable performance in temperatures up to 500°C and aggressive chemical environments.Straight, Flanged or Stepped Designs
Adaptable to various pump models and shaft geometries.
Specifications
| Specification | Value |
|---|---|
| Material | Tungsten Carbide (WC+Co / WC+Ni) |
| Hardness (HRA) | 89 – 92 |
| Outer Diameter | Ø 10 mm – Ø 100 mm (customizable) |
| Inner Diameter Tolerance | ±0.002 mm |
| Length | 10 mm – 150 mm |
| Max Operating Temperature | Up to 500°C |
| Applications | Pumps, compressors, turbines, downhole tools |
Why Choose Retop as Your Supplier?
Retop is a trusted manufacturer of tungsten carbide sleeves with over 14 years of experience delivering precision-engineered components to global clients in over 50 countries. We specialize in tight-tolerance, high-hardness parts backed by ISO 9001-certified production and full in-house machining capability. Whether you require customized ID/OD sizes, stepped profiles, or special coatings, Retop ensures quality, durability, and technical support every step of the way.
