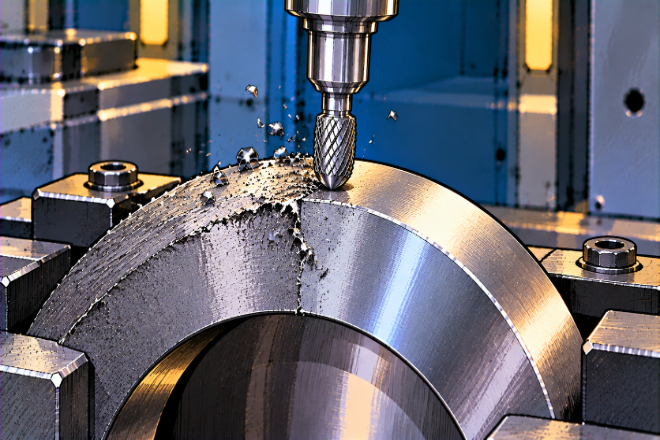

Convex surfaces appear in many industrial parts, from curved housings to rounded edges and complex metal profiles. Finishing these areas is not as simple as working on a flat surface.
Tungsten carbide burrs for convex surface finishing help remove unwanted material, smooth transitions, and improve surface conditions while following curved shapes.
The key is selecting the right burr shape and using controlled cutting methods.
1. Why Are Convex Surfaces Difficult to Finish?
Convex surfaces are common in industrial manufacturing because curved designs can improve strength, reduce stress concentration, and provide better product performance.
However, these curved areas create challenges during finishing.
Unlike a flat surface, a convex surface changes direction continuously. The contact point between the tool and the workpiece moves as the tool travels. This means the operator or machine must constantly control the cutting angle.
One of the biggest problems is uneven material removal.
If too much pressure is applied on one area of the curve, the burr may remove more material than expected. This can create flat spots, uneven transitions, or unwanted changes to the original shape.
Another challenge is maintaining a smooth surface.
A convex surface often needs a consistent finish because visible marks can affect appearance, assembly, or later processing. A tool that works well on flat areas may create poor results when moved across a curved profile.
Access can also be difficult.
Some convex surfaces are part of larger components with limited working space. The tool may need to reach around edges, follow a radius, or work inside a curved transition.
For example, a metal housing may have a rounded outer surface with a small casting defect. Removing this defect requires controlled local finishing instead of aggressive cutting.
This is where tungsten carbide burrs become useful. They provide flexible cutting options for curved surfaces because different head shapes can follow different profiles.
However, manufacturers should understand one important point: A carbide burr is designed for controlled material removal and surface correction. It is not always the best choice for creating a precise final curve.
When a convex surface requires exact geometry, dedicated machining tools or finishing processes may be more suitable.
For local repair, blending, and surface improvement, carbide burrs provide valuable flexibility.

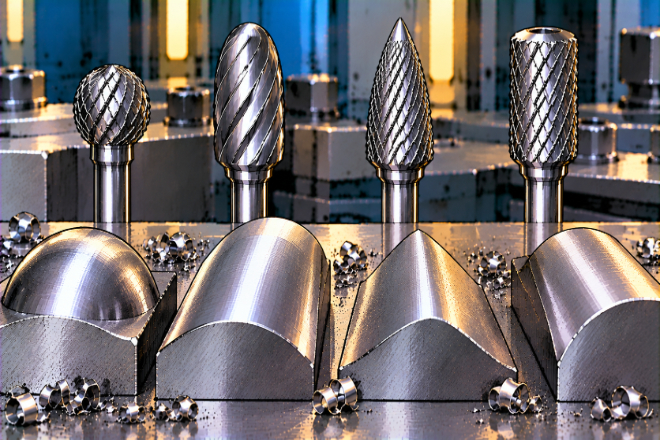

2. Which Tungsten Carbide Burr Shapes Work Best on Convex Surfaces?
The shape of the carbide burr has a major effect on the final result. Because convex surfaces are curved, the cutting head must move smoothly across changing angles.
Different burr shapes provide different levels of control.
Ball-Shaped Burrs
Ball burrs are one of the most common choices for curved surfaces.
Their rounded cutting head naturally follows convex profiles and allows gradual material removal.
They are useful for blending transitions, smoothing curved edges, and removing local defects on rounded areas.
A ball burr is especially helpful when the surface has no sharp corners and requires smooth movement.
Oval Burrs
Oval burrs provide a longer curved cutting surface compared with ball burrs.
They can be useful for wider convex areas where more contact area is needed.
For example, when smoothing a larger curved metal surface, an oval burr may remove material more evenly than a smaller tool.
Flame-Shaped Burrs
Flame burrs have a tapered curved profile.
They are useful for reaching changing surface areas, curved edges, and transitions between different shapes.
Their design allows more controlled work near corners and narrow curved sections.
Radius-End Cylindrical Burrs
These burrs combine straight sides with a rounded end. They can work well when a convex surface connects with a flatter area.
The rounded end helps reduce sharp marks while the side cutting edges provide additional control. The following table shows common choices.
| Convex Surface Condition | Recommended Burr Shape | Main Benefit |
|---|---|---|
| Small rounded defect | Ball burr | Smooth local correction |
| Large curved area | Oval burr | Wider surface contact |
| Curved transition | Flame burr | Flexible profile control |
| Rounded edge blending | Radius-end cylindrical | Smooth wall transition |

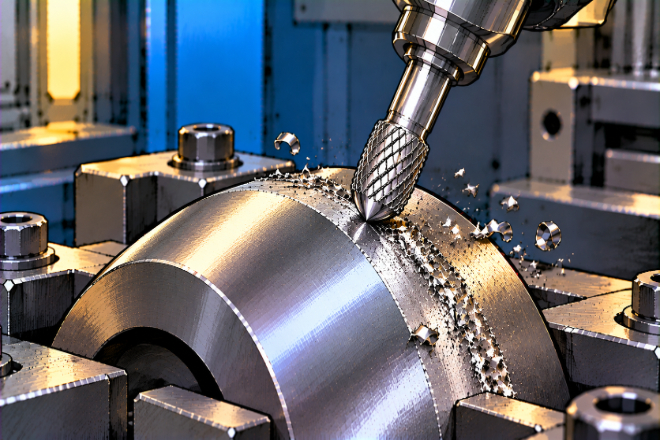

3. How Does Cutting Technique Affect Convex Surface Finishing?
Even with the correct burr shape, technique determines the final quality. Convex surfaces require more careful control because the cutting contact changes continuously.
One common mistake is using too much pressure.
When a burr is pushed heavily against a curved surface, the tool may remove material unevenly. The highest contact point on the curve receives more cutting force than other areas.
This can create unwanted flat areas. A better approach is using light and steady pressure. The burr should cut through its teeth rather than being forced into the material.
Another important factor is tool angle. On a flat surface, maintaining contact is relatively easy. On a convex surface, the angle changes as the tool moves.
A consistent movement helps prevent sudden changes in cutting depth. For manual finishing, smooth movement is especially important.
Short, controlled passes usually provide better results than trying to remove a large amount of material in one movement.
For CNC or automated finishing, the programmed path must follow the surface carefully. The machine needs suitable tool orientation, feed rate, and movement control.
A poor toolpath can create visible marks even when the burr itself is suitable. Chip removal is also important.
Convex surfaces often allow chips to fall away naturally, but certain curved features can still trap debris.
Accumulated chips can scratch the surface or reduce cutting performance. Keeping the cutting area clean helps maintain a consistent finish.
The basic process should be: Inspect the surface → Select the burr shape → Use controlled contact → Remove material gradually → Check the final curve
This approach reduces the risk of changing the original surface shape.

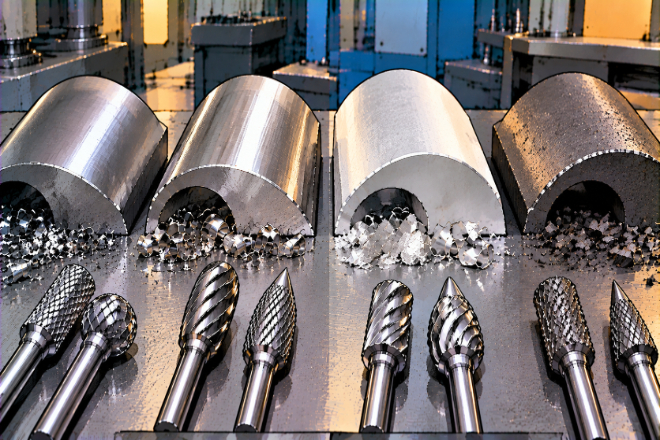

4. How Do You Choose the Right Carbide Burr for Different Convex Materials?
The workpiece material strongly affects burr performance. A convex surface made from aluminum behaves differently from one made from hardened steel.
For steel components, carbide burrs with suitable cutting patterns can provide effective material removal and surface correction.
They are often used for removing small defects, blending edges, and cleaning curved areas.
Stainless steel requires more attention because it can generate heat and may become harder during machining.
Using the correct cutting style and avoiding excessive pressure helps maintain stable cutting.
Aluminum creates another challenge. Because aluminum is softer, chips can stick to the cutting teeth. This can reduce performance and leave a poor surface.
For aluminum convex surfaces, burrs with more open cutting spaces are often preferred because they provide better chip clearance.
Cast iron is commonly found in industrial components with curved surfaces. Carbide burrs can help remove casting irregularities and smooth local areas.
However, the dust created during cast iron machining requires proper handling. Material selection should also consider the purpose of the surface.
A decorative outer curve may require a smoother finish than an internal curved area that will not be visible.
Production companies should define the required result before selecting the tool. The cheapest burr is not always the lowest-cost option.
A tool that wears quickly or creates extra finishing work may increase total production cost. The best choice balances tool life, surface quality, and processing time.

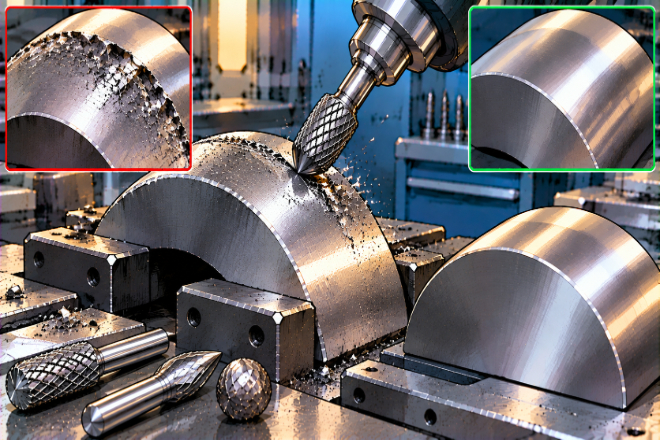

5. How Can Manufacturers Avoid Damage When Using Burrs on Convex Surfaces?
Convex surfaces can be damaged easily because their shape depends on continuous curves. The first step is preventing excessive material removal.
Before machining, identify the exact area that needs correction. If only a small defect exists, do not remove material from the entire surface.
Localized finishing usually provides better control. Tool speed is another important factor. The correct speed depends on burr diameter, material, and cutting conditions.
Using an unsuitable speed can increase heat, vibration, and tool wear. The tool holder also matters. A loose holder or excessive tool extension can create vibration. On a curved surface, vibration can leave visible marks.
The workpiece should be secured firmly before finishing. Movement during cutting can change the contact point and create uneven results.
Operators should also inspect the burr condition. Damaged cutting teeth can produce poor surface quality and increase the chance of scratches.
A worn burr may require more pressure, which increases the risk of damaging the curve. For repeated production work, manufacturers should create clear process standards.
These standards may include:
Burr type
Tool speed
Cutting direction
Feed rate
Inspection method
Replacement timing
A stable process creates more consistent convex surfaces.

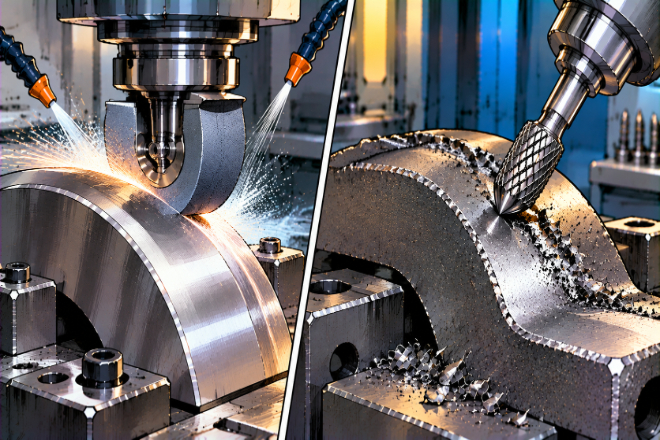

6. When Should Carbide Burrs Be Used Instead of Other Finishing Tools?
Tungsten carbide burrs are useful for many convex surface applications, but they are not suitable for every situation.
If the goal is creating a highly accurate curved profile, CNC milling, grinding, or specialized finishing equipment may provide better control.
Carbide burrs are most valuable when the task involves:
Removing local defects
Blending curved transitions
Repairing damaged areas
Removing excess material
Improving surface appearance
For example, a large industrial casting may have a small raised area on a curved surface. Re-machining the entire component may be unnecessary.
A carbide burr can remove only the unwanted area and save time. Maintenance applications also benefit from this flexibility.
Some large components cannot easily return to a machining center. A suitable rotary tool and carbide burr may allow local repair directly at the working location.
However, if the convex surface has strict dimensional requirements, a controlled machining process is usually better.
The decision should consider:
Required accuracy
Surface finish
Production volume
Repair cost
Tool accessibility
The right tool is the one that solves the actual problem.
Conclusion
Tungsten carbide burrs are effective for convex surface finishing when flexibility and controlled material removal are needed.
Ball, oval, flame, and radius-end burrs can follow curved profiles while removing unwanted material.
The best results come from choosing the correct burr shape, using proper cutting conditions, and protecting the original surface geometry.
